Infinispan 9.2 User Guide

The primary use for Infinispan is to provide a fast in-memory cache of frequently accessed data. Suppose you have a slow data source (database, web service, text file, etc): you could load some or all of that data in memory so that it’s just a memory access away from your code. Using Infinispan is better than using a simple ConcurrentHashMap, since it has additional useful features such as expiration and eviction.

If your data doesn’t fit in a single node, or you want to invalidate entries across multiple instances of your application, Infinispan can scale horizontally to several hundred nodes.

If you need to make your application cluster-aware, integrate Infinispan and get access to features like topology change notifications, cluster communication and clustered execution.

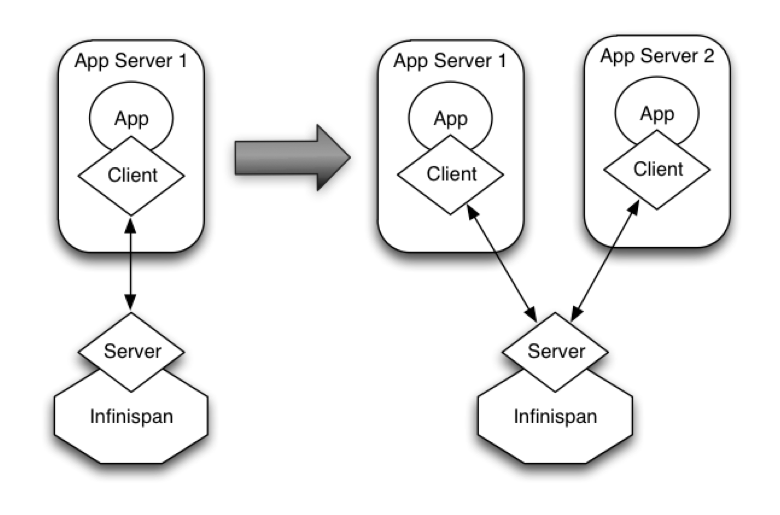

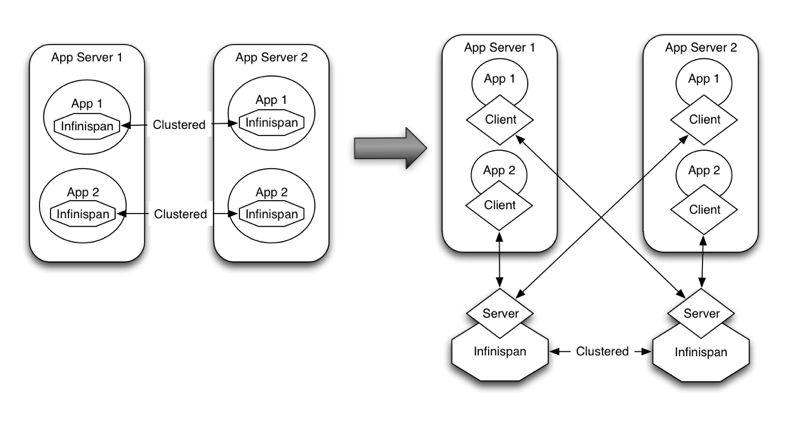

If you want to be able to scale your caching layer independently from your application, or you need to make your data available to different applications, possibly even using different languages / platforms, use Infinispan Server and its various clients.

Data you place in Infinispan doesn’t have to be temporary: use Infinispan as your primary store and use its powerful features such as transactions, notifications, queries, distributed execution, distributed streams, analytics to process data quickly.

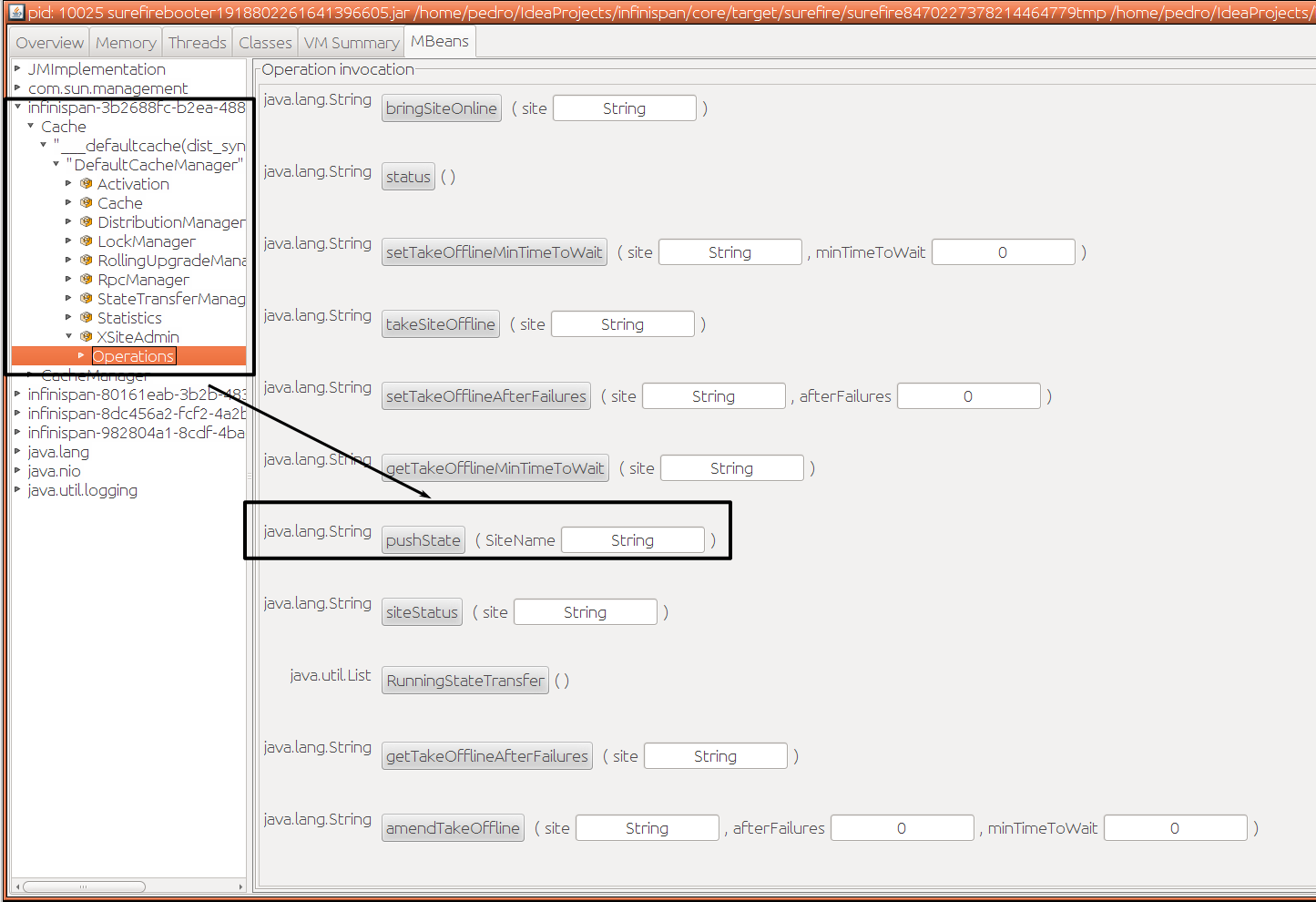

Infinispan supports replication between clusters, allowing you to backup your data across geographically remote sites.

Declarative configuration comes in a form of XML document that adheres to a provided Infinispan configuration XML schema.

Every aspect of Infinispan that can be configured declaratively can also be configured programmatically. In fact, declarative configuration, behind the scenes, invokes the programmatic configuration API as the XML configuration file is being processed. One can even use a combination of these approaches. For example, you can read static XML configuration files and at runtime programmatically tune that same configuration. Or you can use a certain static configuration defined in XML as a starting point or template for defining additional configurations in runtime.

There are two main configuration abstractions in Infinispan: global and cache.

Global configuration defines global settings shared among all cache instances created by a single EmbeddedCacheManager. Shared resources like thread pools, serialization/marshalling settings, transport and network settings, JMX domains are all part of global configuration.

Cache configuration is specific to the actual caching domain itself: it specifies eviction, locking, transaction, clustering, persistence etc. You can specify as many named cache configurations as you need. One of these caches can be indicated as the default cache, which is the cache returned by the CacheManager.getCache() API, whereas other named caches are retrieved via the CacheManager.getCache(String name) API.

Whenever they are specified, named caches inherit settings from the default cache while additional behavior can be specified or overridden. Infinispan also provides a very flexible inheritance mechanism, where you can define a hierarchy of configuration templates, allowing multiple caches to share the same settings, or overriding specific parameters as necessary.

One of the major goals of Infinispan is to aim for zero configuration. A simple XML configuration file containing nothing more than a single infinispan element is enough to get you started. The configuration file listed below provides sensible defaults and is perfectly valid.

However, that would only give you the most basic, local mode, non-clustered cache manager with no caches. Non-basic configurations are very likely to use customized global and default cache elements.

Declarative configuration is the most common approach to configuring Infinispan cache instances. In order to read XML configuration files one would typically construct an instance of DefaultCacheManager by pointing to an XML file containing Infinispan configuration. Once the configuration file is read you can obtain reference to the default cache instance.

or any other named instance specified in my-config-file.xml.

The name of the default cache is defined in the <cache-container> element of the XML configuration file, and additional caches can be configured using the <local-cache>,<distributed-cache>,<invalidation-cache> or <replicated-cache> elements.

The following example shows the simplest possible configuration for each of the cache types supported by Infinispan:

Programmatic Infinispan configuration is centered around the CacheManager and ConfigurationBuilder API. Although every single aspect of Infinispan configuration could be set programmatically, the most usual approach is to create a starting point in a form of XML configuration file and then in runtime, if needed, programmatically tune a specific configuration to suit the use case best.

Let’s assume that a new synchronously replicated cache is to be configured programmatically. First, a fresh instance of Configuration object is created using ConfigurationBuilder helper object, and the cache mode is set to synchronous replication. Finally, the configuration is defined/registered with a manager.

The default cache configuration (or any other cache configuration) can be used as a starting point for creation of a new cache. For example, lets say that infinispan-config-file.xml specifies a replicated cache as a default and that a distributed cache is desired with a specific L1 lifespan while at the same time retaining all other aspects of a default cache. Therefore, the starting point would be to read an instance of a default Configuration object and use ConfigurationBuilder to construct and modify cache mode and L1 lifespan on a new Configuration object. As a final step the configuration is defined/registered with a manager.

As long as the base configuration is the default named cache, the previous code works perfectly fine. However, other times the base configuration might be another named cache. So, how can new configurations be defined based on other defined caches? Take the previous example and imagine that instead of taking the default cache as base, a named cache called "replicatedCache" is used as base. The code would look something like this:

Refer to CacheManager , ConfigurationBuilder , Configuration , and GlobalConfiguration javadocs for more details.

The configuration format of Infinispan has changed since version 6.0 in order to align the embedded schema with the one used by the server. For this reason, when upgrading to Infinispan 7.x or later, you should use the configuration converter included in the all distribution. Simply invoke it from the command-line passing the old configuration file as the first parameter and the name of the converted file as the second parameter.

To convert on Unix/Linux/macOS:

on Windows:

Infinispan uses JGroups for network communications when in clustered mode. Infinispan ships with pre-configured JGroups stacks that make it easy for you to jump-start a clustered configuration.

When you are using a cluster it is very important to be able to find information about membership in the cluster including who is the owner of the cluster.

The getMembers() method returns all of the nodes in the current cluster.

The getCoordinator() method will tell you which one of the members is the coordinator of the cluster. For most intents you shouldn’t need to care who the coordinator is. You can use isCoordinator() method directly to see if the local node is the coordinator as well.

This method provides you access to the underlying Transport that is used to send messages to other nodes. In most cases a user wouldn’t ever need to go to this level, but if you want to get Transport specific information (in this case JGroups) you can use this mechanism.

The stats provided here are coalesced from all of the active caches in this manager. These stats can be useful to see if there is something wrong going on with your cluster overall. If you want to see cluster-wide statistics, use the cluster().getStats() method. == The Cache API

Certain methods exposed in Map have certain performance consequences when used with Infinispan, such as size() , values() , keySet() and entrySet() . Specific methods on the keySet, values and entrySet are fine for use please see their Javadoc for further details.

Attempting to perform these operations globally would have large performance impact as well as become a scalability bottleneck. As such, these methods should only be used for informational or debugging purposes only.

It should be noted that using certain flags with the withFlags method can mitigate some of these concerns, please check each method’s documentation for more details.

For more performance tips, have a look at our Performance Guide.

Further to simply storing entries, Infinispan’s cache API allows you to attach mortality information to data. For example, simply using put(key, value) would create an immortal entry, i.e., an entry that lives in the cache forever, until it is removed (or evicted from memory to prevent running out of memory). If, however, you put data in the cache using put(key, value, lifespan, timeunit) , this creates a mortal entry, i.e., an entry that has a fixed lifespan and expires after that lifespan.

In addition to lifespan , Infinispan also supports maxIdle as an additional metric with which to determine expiration. Any combination of lifespans or maxIdles can be used.

See these examples of using mortal data with Infinispan.

Infinispan’s Cache class contains a different 'put' operation called putForExternalRead . This operation is particularly useful when Infinispan is used as a temporary cache for data that is persisted elsewhere. Under heavy read scenarios, contention in the cache should not delay the real transactions at hand, since caching should just be an optimization and not something that gets in the way.

To achieve this, putForExternalRead acts as a put call that only operates if the key is not present in the cache, and fails fast and silently if another thread is trying to store the same key at the same time. In this particular scenario, caching data is a way to optimise the system and it’s not desirable that a failure in caching affects the on-going transaction, hence why failure is handled differently. putForExternalRead is consider to be a fast operation because regardless of whether it’s successful or not, it doesn’t wait for any locks, and so returns to the caller promptly.

To understand how to use this operation, let’s look at basic example. Imagine a cache of Person instances, each keyed by a PersonId , whose data originates in a separate data store. The following code shows the most common pattern of using putForExternalRead within the context of this example:

Please note that putForExternalRead should never be used as a mechanism to update the cache with a new Person instance originating from application execution (i.e. from a transaction that modifies a Person’s address). When updating cached values, please use the standard put operation, otherwise the possibility of caching corrupt data is likely.

Flags are applied to regular cache methods to alter the behavior of certain methods. For a list of all available flags, and their effects, see the Flag enumeration. Flags are applied using AdvancedCache.withFlags() . This builder method can be used to apply any number of flags to a cache invocation, for example:

The AdvancedCache interface also offers advanced developers a mechanism with which to attach custom interceptors. Custom interceptors allow developers to alter the behavior of the cache API methods, and the AdvancedCache interface allows developers to attach these interceptors programmatically, at run-time. See the AdvancedCache Javadocs for more details.

For more information on writing custom interceptors, see this chapter.

Cache-level events occur on a per-cache basis, and by default are only raised on nodes where the events occur. Note in a distributed cache these events are only raised on the owners of data being affected. Examples of cache-level events are entries being added, removed, modified, etc. These events trigger notifications to listeners registered to a specific cache.

Please see the Javadocs on the org.infinispan.notifications.cachelistener.annotation package for a comprehensive list of all cache-level notifications, and their respective method-level annotations.

Cache manager-level events occur on a cache manager. These too are global and cluster-wide, but involve events that affect all caches created by a single cache manager. Examples of cache manager-level events are nodes joining or leaving a cluster, or caches starting or stopping.

Please see the Javadocs on the org.infinispan.notifications.cachemanagerlistener.annotation package for a comprehensive list of all cache manager-level notifications, and their respective method-level annotations.

By default, all notifications are dispatched in the same thread that generates the event. This means that you must write your listener such that it does not block or do anything that takes too long, as it would prevent the thread from progressing. Alternatively, you could annotate your listener as asynchronous , in which case a separate thread pool will be used to dispatch the notification and prevent blocking the event originating thread. To do this, simply annotate your listener such:

Non-blocking APIs are powerful in that they provide all of the guarantees of synchronous communications - with the ability to handle communication failures and exceptions - with the ease of not having to block until a call completes.  This allows you to better harness parallelism in your system.  For example:

There are 4 things in Infinispan that can be considered to be on the critical path of a typical write operation. These are, in order of cost:

As of Infinispan 4.0, using the async methods will take the network calls and marshalling off the critical path.  For various technical reasons, writing to a cache store and acquiring locks, however, still happens in the caller’s thread.  In future, we plan to take these offline as well.  See this developer mail list thread about this topic.

Strictly, these methods do not return JDK Futures, but rather a sub-interface known as a NotifyingFuture .  The main difference is that you can attach a listener to a NotifyingFuture such that you could be notified when the future completes.  Here is an example of making use of a notifying future:

The Javadocs on the Cache interface has some examples on using the asynchronous API, as does this article by Manik Surtani introducing the API.

If you want to use these or any other flags available, which by the way are described in detail the Flag enumeration , you simply need to get hold of the advanced cache and add the flags you need via the withFlags() method call. For example:

It’s worth noting that these flags are only active for the duration of the cache operation. If the same flags need to be used in several invocations, even if they’re in the same transaction, withFlags() needs to be called repeatedly. Clearly, if the cache operation is to be replicated in another node, the flags are carried over to the remote nodes as well.

The aim of this API is to store information in a hierarchical way. The hierarchy is defined using paths represented as Fqn or fully qualified names , for example: /this/is/a/fqn/path or /another/path . In the hierarchy, there’s a special path called root which represents the starting point of all paths and it’s represented as: /

Each FQN path is represented as a node where users can store data using a key/value pair style API (i.e. a Map). For example, in /persons/john , you could store information belonging to John, for example: surname=Smith, birthdate=05/02/1980…​etc.

Please remember that users should not use root as a place to store data. Instead, users should define their own paths and store data there. The following sections will delve into the practical aspects of this API.

The first step to use the tree API is to actually create a tree cache. To do so, you need to create an Infinispan Cache as you’d normally do, and using the TreeCacheFactory , create an instance of TreeCache . A very important note to remember here is that the Cache instance passed to the factory must be configured with invocation batching. For example:

The Tree API effectively provides two ways to interact with the data:

Via TreeCache convenience methods: These methods are located within the TreeCache interface and enable users to store , retrieve , move , remove …​etc data with a single call that takes the Fqn , in String or Fqn format, and the data involved in the call. For example:

Or:

Via Node API: It allows finer control over the individual nodes that form the FQN, allowing manipulation of nodes relative to a particular node. For example:

Or:

Or even:

A node also provides the ability to access its parent or children . For example:

Or:

In the previous section, some of the most used operations, such as addition and retrieval, have been shown. However, there are other important operations that are worth mentioning, such as remove:

You can for example remove an entire node, i.e. /persons/john , using:

Or remove a child node, i.e. persons that a child of root, via:

You can also remove a particular key/value pair in a node:

Or you can remove all data in a node with:

Another important operation supported by Tree API is the ability to move nodes around in the tree. Imagine we have a node called "john" which is located under root node. The following example is going to show how to we can move "john" node to be under "persons" node:

Current tree structure:

Moving trees from one FQN to another:

Final tree structure:

Understanding when and how locks are acquired when manipulating the tree structure is important in order to maximise the performance of any client application interacting against the tree, while at the same time maintaining consistency.

Locking on the tree API happens on a per node basis. So, if you’re putting or updating a key/value under a particular node, a write lock is acquired for that node. In such case, no write locks are acquired for parent node of the node being modified, and no locks are acquired for children nodes.

If you’re adding or removing a node, the parent is not locked for writing. In JBoss Cache, this behaviour was configurable with the default being that parent was not locked for insertion or removal.

Finally, when a node is moved, the node that’s been moved and any of its children are locked, but also the target node and the new location of the moved node and its children. To understand this better, let’s look at an example:

Imagine you have a hierarchy like this and we want to move c/ to be underneath b/:

The end result would be something like this:

To make this move, locks would have been acquired on:

The current Infinispan listeners have been designed with key/value store notifications in mind, and hence they do not map to tree cache events correctly. Tree cache specific listeners that map directly to tree cache events (i.e. adding a child…​etc) are desirable but these are not yet available. If you’re interested in this type of listeners, please follow this issue to find out about any progress in this area.

Being an asynchronous API, all methods that return a single result, return a CompletableFuture which wraps the result, so you can use the resources of your system more efficiently by having the possibility to receive callbacks when the CompletableFuture has completed, or you can chain or compose them with other CompletableFuture.

For those operations that return multiple results, the API returns instances of a ​Traversable interface which offers a lazy pull-style API for working with multiple results. ​Traversable ,​ being a lazy pull-style API, can still be asynchronous underneath since the user can decide to work on the traversable at a later stage, and the ​Traversable implementation itself can decide when to compute those results.

Since the content of the functions is transparent to Infinispan, the API has been split into 3 interfaces for read­-only ( R​eadOnlyMap )​, read­-write ( R​eadWriteMap )​ and write­-only ( W​riteOnlyMap )​ operations respectively, in order to provide hints to the Infinispan internals on the type of work needed to support functions.

To construct any of the read-only, write-only or read-write map instances, an Infinispan AdvancedCache is required, which is retrieved from the Cache Manager, and using the AdvancedCache , static method factory methods are used to create R​eadOnlyMap , R​eadWriteMap or W​riteOnlyMap :

Read-only operations have the advantage that no locks are acquired for the duration of the operation. Here’s an example on how to the equivalent operation for Map.get(K) :

Read-only map also exposes operations to retrieve multiple keys in one go:

Finally, read-only map also exposes methods to read all existing keys as well as entries, which include both key and value information.

Write-only operations include operations that insert or update data in the cache and also removals. Crucially, a write-only operation does not attempt to read any previous value associated with the key. This is an important optimization since that means neither the cluster nor any persistence stores will be looked up to retrieve previous values. In the main Infinispan Cache, this kind of optimization was achieved using a local-only per-invocation flag, but the use case is so common that in this new functional API, this optimization is provided as a first-class citizen.

Using write-only map API , an operation equivalent to javax.cache.Cache (JCache) 's void returning put can be achieved this way, followed by an attempt to read the stored value using the read-only map API:

Multiple key/value pairs can be stored in one go using evalMany API:

To remove all contents of the cache, there are two possibilities with different semantics. If using evalAll each cached entry is iterated over and the function is called with that entry’s information. Using this method also results in listeners (see functional listeners section for more information) being invoked:

The alternative way to remove all entries is to call truncate operation which clears the entire cache contents in one go without invoking any listeners and is best-effort:

The final type of operations we have are read­write operations, and within this category CAS-like (Compare­And­Swap) operations can be found. This type of operations require previous value associated with the key to be read and for locks to be acquired before executing the function. The vast majority of operations within ConcurrentMap and JCache APIs fall within this category, and they can easily be implemented using the read-write map API . Moreover, with read-write map API , you can make CAS­like comparisons not only based on value equality but based on metadata parameter equality such as version information, and you can send back previous value or boolean instances to signal whether the CAS­like comparison succeeded.

Implementing a write operation that returns the previous value associated with the cache entry is easy to achieve with the read-write map API:

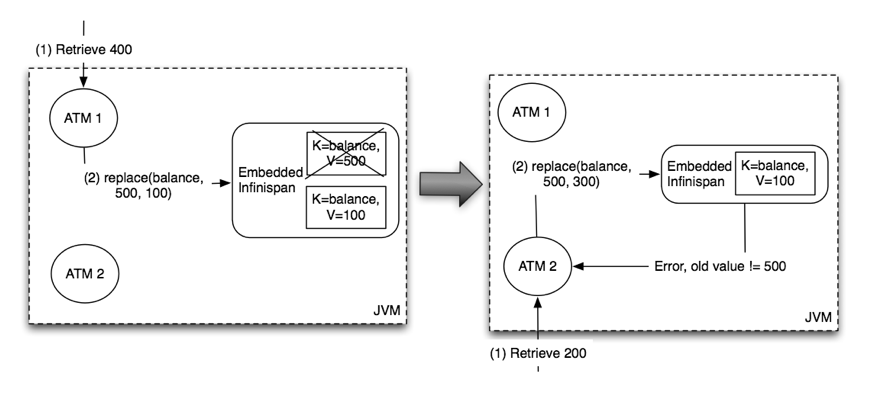

ConcurrentMap.replace(K, V, V) is a replace function that compares the value present in the map and if it’s equals to the value passed in as first parameter, the second value is stored, returning a boolean indicating whether the replace was successfully completed. This operation can easily be implemented using the read-write map API:

Read-write map API contains evalMany and evalAll operations which behave similar to the write-only map offerings, except that they enable previous value and metadata parameters to be read.

Metadata parameters provide extra information about the cache entry, such as version information, lifespan, last accessed/used time…​etc. Some of these can be provided by the user, e.g. version, lifespan…​etc, but some others are computed internally and can only be queried, e.g. last accessed/used time.

The functional map API provides a flexible way to store metadata parameters along with an cache entry. To be able to store a metadata parameter, it must extend MetaParam.Writable interface, and implement the methods to allow the internal logic to extra the data. Storing is done via the set(V, MetaParam.Writable…​) method in write-only entry view or read-write entry view function parameters.

Querying metadata parameters is available via the findMetaParam(Class) method available via read-write entry view or read-only entry view or function parameters.

Here is an example showing how to store metadata parameters and how to query them:

If the metadata parameter is generic, for example MetaEntryVersion<T> , retrieving the metadata parameter along with a specific type can be tricky if using .class static helper in a class because it does not return a Class<T> but only Class, and hence any generic information in the class is lost:

When generic information is important the user can define a static helper method that coerces the static class retrieval to the type requested, and then use that helper method in the call to findMetaParam:

Finally, users are free to create new instances of metadata parameters to suit their needs. They are stored and retrieved in the very same way as done for the metadata parameters already provided by the functional map API.

Per-invocation parameters are applied to regular functional map API calls to alter the behaviour of certain aspects. Adding per invocation parameters is done using the withParams(Param<?>…​) method.

Param.FutureMode tweaks whether a method returning a CompletableFuture will span a thread to invoke the method, or instead will use the caller thread. By default, whenever a call is made to a method returning a CompletableFuture , a separate thread will be span to execute the method asynchronously. However, if the caller will immediately block waiting for the CompletableFuture to complete, spanning a different thread is wasteful, and hence Param.FutureMode.COMPLETED can be passed as per-invocation parameter to avoid creating that extra thread. Example:

Param.PersistenceMode controls whether a write operation will be propagated to a persistence store. The default behaviour is for all write-operations to be propagated to the persistence store if the cache is configured with a persistence store. By passing PersistenceMode.SKIP as parameter, the write operation skips the persistence store and its effects are only seen in the in-memory contents of the cache. PersistenceMode.SKIP can be used to implement an Cache.evict() method which removes data from memory but leaves the persistence store untouched:

Note that there’s no need for another PersistenceMode option to skip reading from the persistence store, because a write operation can skip reading previous value from the store by calling a write-only operation via the WriteOnlyMap.

Finally, new Param implementations are normally provided by the functional map API since they tweak how the internal logic works. So, for the most part of users, they should limit themselves to using the Param instances exposed by the API. The exception to this rule would be advanced users who decide to add new interceptors to the internal stack. These users have the ability to query these parameters within the interceptors.

The functional map offers a listener API, where clients can register for and get notified when events take place. These notifications are post-event, so that means the events are received after the event has happened.

The listeners that can be registered are split into two categories: write listeners and read-write listeners.

Running functional map in a cluster of nodes involves marshalling and replication of the operation parameters under certain circumstances.

To be more precise, when write operations are executed in a cluster, regardless of read-write or write-only operations, all the parameters to the method and the functions are replicated to other nodes.

There are multiple ways in which a function can be marshalled. The simplest way, which is also the most costly option in terms of payload size, is to mark the function as Serializable :

Since version 9.1 Infinispan provides overloads for all functional methods that make lambdas passed directly to the API serializable by default; the compiler automatically selects this overload if that’s possible. Therefore you can call

without doing the cast described above.

A more economical way to marshall a function is to provide an Infinispan Externalizer for it:

To help users take advantage of the tiny payloads generated by Externalizer-based functions, the functional API comes with a helper class called org.infinispan.commons.marshall.MarshallableFunctions which provides marshallable functions for some of the most commonly user functions.

In fact, all the functions required to implement ConcurrentMap and JCache using the functional map API have been defined in MarshallableFunctions. For example, here is an implementation of JCache’s boolean putIfAbsent(K, V) using functional map API which can be run in a cluster:

This new API is meant to complement existing Key/Value Infinispan API offerings, so you’ll still be able to use ConcurrentMap or JCache standard APIs if that’s what suits your use case best.

The target audience for this new API is either:

Eviction is handled by Caffeine utilizing the TinyLFU algorithm with an additional admission window. This was chosen as provides high hit rate while also requiring low memory overhead. This provides a better hit ratio than LRU while also requiring less memory than LIRS.

This type of eviction will remove entries based on how many there are in the cache. Once the count of entries has grown larger than the size then an entry will be removed to make room.

This type of eviction will estimate how much each entry will take up in memory and will remove an entry when the total size of all entries is larger than the configured size. This type only works with primitive wrapper, String and byte[] types, thus if custom types are desired you must enable storeAsBinary. Also MEMORY based eviction only works with LRU policy.

Infinispan allows the user to configure in what form their data is stored. Each form supports the same features of Infinispan, however eviction can be limited for some forms. There are currently three storage formats that Infinispan provides, they are:

Stores the keys and values as objects in the Java heap Only COUNT eviction type is supported.

Stores the keys and values as a byte[] in the Java heap. This will use the configured marshaller for the cache if there is one. Both COUNT and MEMORY eviction types are supported.

Stores the keys and values in native memory outside of the Java heap as bytes. The configured marshaller will be used if the cache has one. Both COUNT and MEMORY eviction types are supported.

By default when no <memory /> element is specified, no eviction takes place and OBJECT storage type is used.

In case there is an memory element, this table describes the behaviour of eviction based on information provided in the xml configuration ("-" in Supplied size or Supplied strategy column means that the attribute wasn’t supplied)

Both Eviction and Expiration are means of cleaning the cache of unused entries and thus guarding the heap against OutOfMemory exceptions, so now a brief explanation of the difference.

With eviction you set maximal number of entries you want to keep in the cache and if this limit is exceeded, some candidates are found to be removed according to a choosen eviction strategy (LRU, LIRS, etc…​). Eviction can be setup to work with passivation (evicting to a cache store).

With expiration you set time criteria for entries, how long you want to keep them in cache. Either you set maximum lifespan of the entry - time it is allowed to stay in the cache or maximum idle time , time it’s allowed to be untouched (no operation performed with given key).

Eviction may be configured using the Configuration bean or the XML file. Eviction configuration is on a per-cache basis. Valid eviction-related configuration elements are:

Programmatically, the same would be defined using:

Memory based eviction may require some additional configuration options if you are using your own custom types (as Infinispan is normally used). In this case Infinispan cannot estimate the memory usage of your classes and as such you are required to use storeAsBinary when memory based eviction is used.

Eviction is disabled by default. Default values are used:

Expiration lifespan and maxIdle both default to -1.

Expiration allows you to set either a lifespan or a maximum idle time on each key/value pair stored in the cache. This can either be set cache-wide using the configuration, as described above, or it can be defined per-key/value pair using the Cache interface. Any values defined per key/value pair overrides the cache-wide default for the specific entry in question.

For example, assume the following configuration:

When passivation is disabled, whenever an element is modified, added or removed, then that modification is persisted in the backend store via the cache loader. There is no direct relationship between eviction and cache loading. If you don’t use eviction, what’s in the persistent store is basically a copy of what’s in memory. If you do use eviction, what’s in the persistent store is basically a superset of what’s in memory (i.e. it includes entries that have been evicted from memory). When passivation is enabled, and with an unshared store, there is a direct relationship between eviction and the cache loader. Writes to the persistent store via the cache loader only occur as part of the eviction process. Data is deleted from the persistent store when the application reads it back into memory. In this case, what’s in memory and what’s in the persistent store are two subsets of the total information set, with no intersection between the subsets. With a shared store, entries which have been passivated in the past will continue to exist in the store, although they may have a stale value if this has been overwritten in memory.

The following is a simple example, showing what state is in RAM and in the persistent store after each step of a 6 step process:

In this mode, which is supported in version 4.0, when clients update a cache entry, i.e. via a Cache.put() invocation, the call will not return until Infinispan has gone to the underlying cache store and has updated it. Normally, this means that updates to the cache store are done within the boundaries of the client thread.

The main advantage of this mode is that the cache store is updated at the same time as the cache, hence the cache store is consistent with the cache contents. On the other hand, using this mode reduces performance because the latency of having to access and update the cache store directly impacts the duration of the cache operation.

Configuring a write-through or synchronous cache store does not require any particular configuration option. By default, unless marked explicitly as write-behind or asynchronous, all cache stores are write-through or synchronous. Please find below a sample configuration file of a write-through unshared local file cache store:

In this mode, updates to the cache are asynchronously written to the cache store. Normally, this means that updates to the cache store are done by a separate thread to the client thread interacting with the cache.

One of the major advantages of this mode is that the performance of a cache operation does not get affected by the update of the underlying store. On the other hand, since the update happens asynchronously, there’s a time window during the which the cache store can contain stale data compared to the cache. Even within write-behind, there are different strategies that can be used to store data:

Starting with Infinispan 6.0, a new file cache store has been created called single file cache store. The old pre-6.0 file cache store has been completely removed, and it’s no longer configurable.

The new single file cache store keeps all data in a single file. The way it looks up data is by keeping an in-memory index of keys and the positions of their values in this file. This results in greater performance compared to old file cache store. There is one caveat though. Since the single file based cache store keeps keys in memory, it can lead to increased memory consumption, and hence it’s not recommended for caches with big keys.

In certain use cases, this cache store suffers from fragmentation: if you store larger and larger values, the space is not reused and instead the entry is appended at the end of the file. The space (now empty) is reused only if you write another entry that can fit there. Also, when you remove all entries from the cache, the file won’t shrink, and neither will be de-fragmented.

These are the available configuration options for the single file cache store:

In Infinispan 7.0 we have added a new experimental local file-based cache store - Soft-Index File Store. It is a pure Java implementation that tries to get around Single File Store’s drawbacks by implementing a variant of B+ tree that is cached in-memory using Java’s soft references - here’s where the name Soft-Index File Store comes from. This B+ tree (called Index) is offloaded on filesystem to single file that does not need to be persisted - it is purged and rebuilt when the cache store restarts, its purpose is only offloading.

The data that should be persisted are stored in a set of files that are written in append-only way - that means that if you store this on conventional magnetic disk, it does not have to seek when writing a burst of entries. It is not stored in single file but set of files. When the usage of any of these files drops below 50% (the entries from the file are overwritten to another file), the file starts to be collected, moving the live entries into different file and in the end removing that file from disk.

Most of the structures in Soft Index File Store are bounded, therefore you don’t have to be afraid of OOMEs. For example, you can configure the limits for concurrently open files as well.

In order to obtain a connection to the database the JDBC cache store relies on a ConnectionFactory implementation. The connection factory is specified programmatically using one of the connectionPool(), dataSource() or simpleConnection() methods on the JdbcStringBasedStoreConfigurationBuilder class or declaratively using one of the <connectionPool />, <dataSource /> or <simpleConnection /> elements.

Infinispan ships with three ConnectionFactory implementations:

Refer to the official documentation for details of all configuration properties.

The PooledConnectionFactory is generally recommended for stand-alone deployments (i.e. not running within AS or servlet container). ManagedConnectionFactory can be used when running in a managed environment where a DataSource is present, so that connection pooling is performed within the DataSource.

Below is a sample configuration for the JdbcStringBasedStore. For detailed description of all the parameters used refer to the JdbcStringBasedStore.

Finally, below is an example of a JDBC cache store with a managed connection factory, which is chosen implicitly by specifying a datasource JNDI location:

The JDBC Mixed and Binary stores have been removed in Infinispan 9.0.0 due to the poor performance associated with storing entries in buckets. Storing entries in buckets is non-optimal as each read/write to the store requires an existing bucket for a given hash to be retrieved, deserialised, updated, serialised and then re-inserted back into the db. To assist users, we have created a migration tool JDBCMigrator.java, that reads data from an existing Mixed/Binary store and then stores it in a string keyed table via the JdbcStringBasedStore.

RocksDB is a fast key-value filesystem-based storage from Facebook. It started as a fork of Google’s LevelDB, but provides superior performance and reliability, especially in highly concurrent scenarios.

Refer to the test case for code samples in action.

Refer to test configurations for configuration samples.

For example, given a persistence unit "myPersistenceUnit", and a JPA entity User:

User entity class

Then you can configure a cache "usersCache" to use JPA Cache Store, so that when you put data into the cache, the data would be persisted into the database based on JPA configuration.

Normally a single Infinispan cache can store multiple types of key/value pairs, for example:

It’s important to note that, when a cache is configured to use a JPA Cache Store, that cache would only be able to store ONE type of data.

Use of @EmbeddedId is supported so that you can also use composite keys.

Lastly, auto-generated IDs (e.g., @GeneratedValue) is not supported. When putting things into the cache with a JPA cache store, the key should be the ID value!

Refer to the test case for code samples in action.

Refer to test configurations for configuration samples.

A Custom Cache Store can be packaged into a separate JAR file and deployed in a HotRod server using the following steps:

Traditional local caches use the same architecture as clustered caches, i.e. they use the interceptor stack. That way a lot of the implementation can be reused. However, if the advanced features are not needed and performance is more important, the interceptor stack can be stripped away and simple cache can be used.

So, which features are stripped away? From the configuration perspective, simple cache does not support:

From the API perspective these features throw an exception:

So, what’s left?

Even with synchronous replication, distributed caches are not linearizable. (For transactional caches, we say they do not support serialization/snapshot isolation.) We can have one thread doing a single put:

But another thread might see the values in a different order:

The reason is that read can return the value from any owner, depending on how fast the primary owner replies. The write is not atomic across all the owners — in fact, the primary commits the update only after it receives a confirmation from the backup. While the primary is waiting for the confirmation message from the backup, reads from the backup will see the new value, but reads from the primary will see the old one.

Distributed caches split entries into a fixed number of segments, and assign each segment to a list of owner nodes. Replicated caches do the same, except every node is an owner.

The first node in the owners list is called the primary owner, and the others are called backup owners. The segment ownership table is broadcast to every node when the cache topology changes (i.e. a node joins or leaves the cluster). This way, a node can compute the location of a key itself, without resorting to multicast requests or maintaining per-key metadata.

The number of segments is configurable (numSegments), but it cannot be changed without restarting the cluster. The mapping of keys to segments is also fixed — a key must map to the same segment, regardless of how the topology of the cluster changes. The key-to-segment mapping can be customized by configuring a KeyPartitioner or by using the Grouping API.

There is no hard rule on how segments must be mapped to owners, but the goal is to balance the number of segments allocated to each node and at the same time minimize the number of segments that have to move after a node joins or leaves the cluster. The segment mapping is customizable, and in fact there are five implementations that ship with Infinispan:

Infinispan’s very dynamic nature in handling topology changes (i.e. nodes being added / removed at runtime) means that, normally, a node doesn’t wait for the presence of other nodes before starting. While this is very flexible, it might not be suitable for applications which require a specific number of nodes to join the cluster before caches are started. For this reason, you can specify how many nodes should have joined the cluster before proceeding with cache initialization. To do this, use the initialClusterSize and initialClusterTimeout transport properties. The declarative XML configuration:

The programmatic Java configuration:

The above configuration will wait for 4 nodes to join the cluster before initialization. If the initial nodes do not appear within the specified timeout, the cache manager will fail to start.

When L1 is enabled, a node will keep the result of remote reads locally for a short period of time (configurable, 10 minutes by default), and repeated lookups will return the local L1 value instead of asking the owners again.

L1 caching is not free though. Enabling it comes at a cost, and this cost is that every entry update must broadcast an invalidation message to all the nodes. L1 entries can be evicted just like any other entry when the the cache is configured with a maximum size. Enabling L1 will improve performance for repeated reads of non-local keys, but it will slow down writes and it will increase memory consumption to some degree.

Is L1 caching right for you? The correct approach is to benchmark your application with and without L1 enabled and see what works best for your access pattern.

The following topology hints can be specified:

All of the above are optional. When provided, the distribution algorithm will try to spread the ownership of each segment across as many sites, racks, and machines (in this order) as possible.

In a distributed cache, a key is allocated to a list of nodes with an opaque algorithm. There is no easy way to reverse the computation and generate a key that maps to a particular node. However, we can generate a sequence of (pseudo-)random keys, see what their primary owner is, and hand them out to the application when it needs a key mapping to a particular node.

Complementary to Key affinity service and similar to AtomicMap, the grouping API allows you to co-locate a group of entries on the same nodes, but without being able to select the actual nodes.

All clustered cache modes can be configured to use asynchronous communications with the mode="ASYNC" attribute on the <replicated-cache/>, <distributed-cache>, or <invalidation-cache/> element.

With asynchronous communications, the originator node does not receive any acknowledgement from the other nodes about the status of the operation, so there is no way to check if it succeeded on other nodes.

We do not recommend asynchronous communications in general, as they can cause inconsistencies in the data, and the results are hard to reason about. Nevertheless, sometimes speed is more important than consistency, and the option is available for those cases.

The Asynchronous API allows you to use synchronous communications, but without blocking the user thread.

There is one caveat: The asynchronous operations do NOT preserve the program order. If a thread calls cache.putAsync(k, v1); cache.putAsync(k, v2), the final value of k may be either v1 or v2. The advantage over using asynchronous communications is that the final value can’t be v1 on one node and v2 on another.

Because the Cache interface extends java.util.Map, write methods like put(key, value) and remove(key) return the previous value by default.

In some cases, the return value may not be correct:

Transactional caches return the correct previous value in cases 3 and 4. However, transactional caches also have a gotcha: in distributed mode, the read-committed isolation level is implemented as repeatable-read. That means this example of "double-checked locking" won’t work:

The correct way to implement this is to use cache.getAdvancedCache().withFlags(Flag.FORCE_WRITE_LOCK).get(k).

In caches with optimistic locking writes can return a stale previous value as well, and the only way protect against it is to enable write-skew checks and to catch WriteSkewException.
